Intercal SL100-110

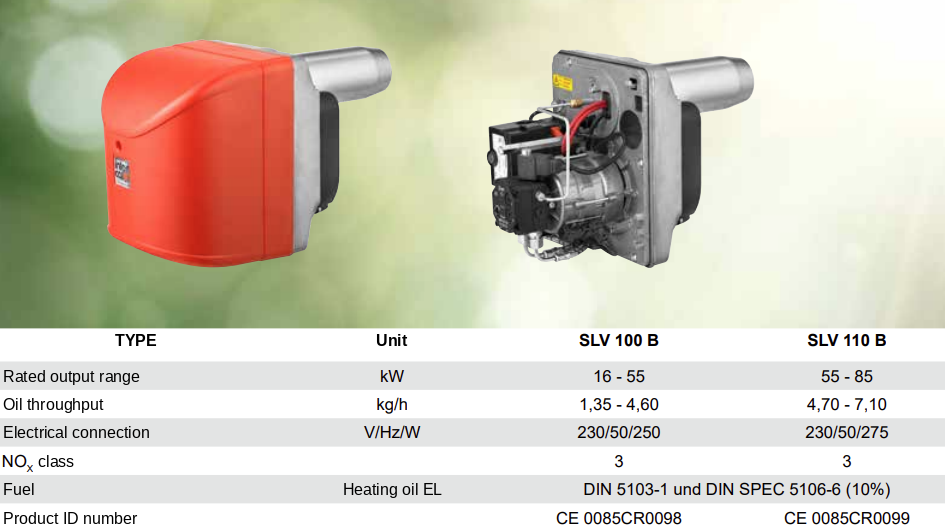

The Intercal SLV 100 B and SLV 110 B are robust yellow-flame oil burners for heating oil EL and low-sulphur heating oil. They suit a wide range of hot water heating boilers, including condensing models and boilers with high combustion chamber resistance. The SLV 100 B covers 16–55 kW and the SLV 110 B covers 55–85 kW. Both meet DIN EN 267, NOx class 3 and the German 1. BImSchV emission standard. Proven components include a Danfoss or Suntec oil pump, double ignition electrode, adjustable air damper and Satronic or Siemens burner control with fault diagnosis. A sliding mounting flange allows flexible installation.

Price on request

In Stock

request_quote Request Quote / Reserve Stock download Downloads & Installation (1)

support_agent Need sizing advice? Call our Paphos engineering desk: +357 26 819 636

Engineering datasheet

Technical Parameters & Installation

Automatic air damper.
High precision fuel mix mechanism for steady and full mix of air-fuel.
Sound-insulation cover (for types SLV-BN-SL33 B).
Progressive regulation of incoming air.
Modern, compact, good
Efficient, low-emission oil burners for universal use in old and new boilers
Complies with the limit values of 1. BImSchV 2010
Individual power adjustment with two single-stage versions for burner capacities of 16 to 55 kW and 55 to 85 kW
Precision mixing facilities for clean combustion
Automatic air closing flap
Simple power adjustment and burner settings
Extremely quiet due to optimized soundproofing and special air box.
Non-room-sealed operation possible
Stable aluminum tangential case
Heat-proven, low-maintenance and durable
